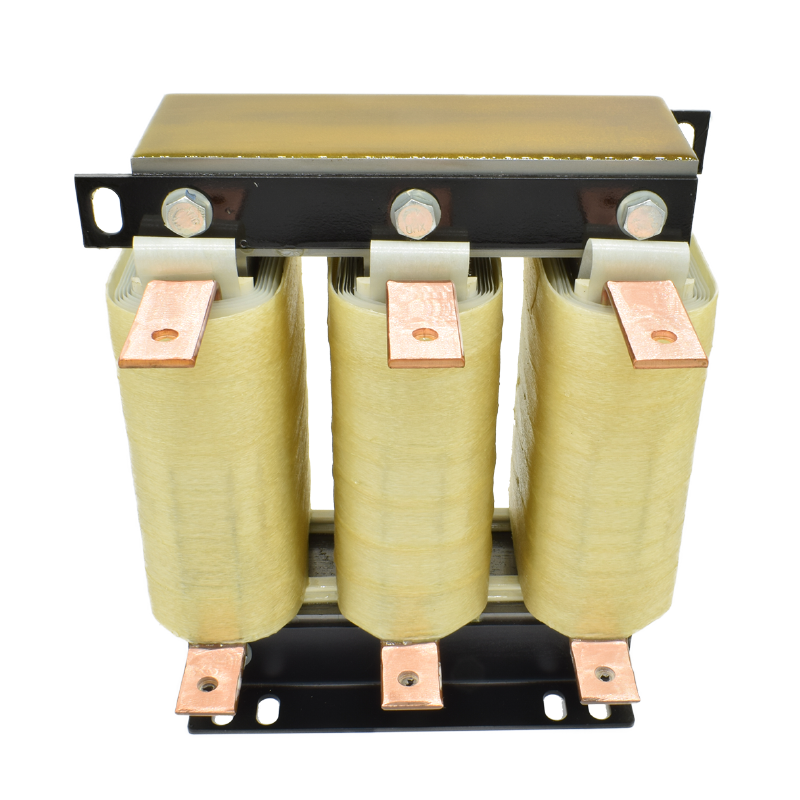

變頻器專用輸入電抗器選型配置
發布時間：2023-04-11 16:26
瀏覽次數：398
| 輸入電抗器型號 Reactor type | 適配場合 | 適配功率 | 額定電流(A) | 電抗率 | 壓降 | 電感（mH) |
| SLK-5-2.8 | 通用型配置 | 0.8 | 5 | 2% | 4.4V | 2.8 |
| SLK-5-2.8 | 1.5 | 5 | 2% | 4.4V | 2.8 | |
| SLK-10-1.4 | 2.2 | 10 | 2% | 4.4V | 1.4 | |
| SLK-15-0.934 | 3.7/5.5 | 15 | 2% | 4.4V | 0.934 | |
| SLK-15-0.934 | 5.5 | 15 | 2% | 4.4V | 0.934 | |
| SLK-20-0.7 | 7.5 | 20 | 2% | 4.4V | 0.7 | |
| SLK-30-0.467 | 11.0 | 30 | 2% | 4.4V | 0.467 | |
| SLK-40-0.35 | 15.0 | 40 | 2% | 4.4V | 0.35 | |
| SLK-50-0.28 | 18.5 | 50 | 2% | 4.4V | 0.28 | |
| SLK-60-0.233 | 22.0 | 60 | 2% | 4.4V | 0.233 | |
| SLK-80-0.175 | 30.0 | 80 | 2% | 4.4V | 0.175 | |
| SLK-110-0.127 | 37.0 | 110 | 2% | 4.4V | 0.127 | |
| SLK-125-0.112 | 45.0 | 125 | 2% | 4.4V | 0.112 | |
| SLK-150-0.0934 | 55.0 | 150 | 2% | 4.4V | 0.0934 | |
| SLK-200-0.07 | 75.0 | 200 | 2% | 4.4V | 0.07 | |
| SLK-250-0.056 | 90.0 | 250 | 2% | 4.4V | 0.056 | |
| SLK-275-0.051 | 110.0 | 275 | 2% | 4.4V | 0.051 | |
| SLK-330-0.042 | 132.0 | 330 | 2% | 4.4V | 0.042 | |
| SLK-450-0.031 | 160.0 | 450 | 2% | 4.4V | 0.031 | |
| SLK-500-0.028 | 200.0 | 500 | 2% | 4.4V | 0.028 | |
| SLK-540-0.026 | 220.0 | 540 | 2% | 4.4V | 0.026 | |
| SLK-625-0.0224 | 250.0 | 625 | 2% | 4.4V | 0.0224 | |
| SLK-700-0.02 | 280.0 | 700 | 2% | 4.4V | 0.02 | |
| SLK-800-0.0175 | 315.0 | 800 | 2% | 4.4V | 0.0175 | |
| SLK-900-0.0155 | 355.0 | 900 | 2% | 4.4V | 0.0155 | |
| SLK-1000-0.014 | 380.0 | 1000 | 2% | 4.4V | 0.014 | |
| SLK-1100A-0.013 | 400.0 | 1100 | 2% | 4.4V | 0.013 | |
| 輸入電抗器型號 Reactor type | 適配場合 | 適配功率 | 額定電流(A) | 電抗率 | 壓降 | 電感（mH) |
| SLK-5-5.6 | 諧波干擾嚴重場合 | 0.8 | 5 | 4% | 8.8V | 5.6 |
| SLK-5-5.6 | 1.5 | 5 | 4% | 8.8V | 5.6 | |
| SLK-10-2.8 | 2.2 | 10 | 4% | 8.8V | 2.8 | |
| SLK-15-1.87 | 3.7/5.5 | 15 | 4% | 8.8V | 1.87 | |
| SLK-15-1.87 | 5.5 | 15 | 4% | 8.8V | 1.87 | |
| SLK-20-1.4 | 7.5 | 20 | 4% | 8.8V | 1.4 | |
| SLK-30-0.934 | 11.0 | 30 | 4% | 8.8V | 0.934 | |
| SLK-40-0.7 | 15.0 | 40 | 4% | 8.8V | 0.7 | |
| SLK-50-0.56 | 18.5 | 50 | 4% | 8.8V | 0.56 | |
| SLK-60-0.467 | 22.0 | 60 | 4% | 8.8V | 0.467 | |
| SLK-80-0.35 | 30.0 | 80 | 4% | 8.8V | 0.35 | |
| SLK-110-0.233 | 37.0 | 110 | 4% | 8.8V | 0.254 | |
| SLK-125-0.233 | 45.0 | 125 | 4% | 8.8V | 0.224 | |
| SLK-150-0.187 | 55.0 | 150 | 4% | 8.8V | 0.187 | |
| SLK-200-0.14 | 75.0 | 200 | 4% | 8.8V | 0.14 | |
| SLK-250-0.112 | 90.0 | 250 | 4% | 8.8V | 0.112 | |
| SLK-275-0.0934 | 110.0 | 275 | 4% | 8.8V | 0.11 | |
| SLK-330-0.08 | 132.0 | 330 | 4% | 8.8V | 0.085 | |
| SLK-450-0.07 | 160.0 | 450 | 4% | 8.8V | 0.0623 | |
| SLK-500-0.056 | 200.0 | 500 | 4% | 8.8V | 0.056 | |
| SLK-540-0.05 | 220.0 | 540 | 4% | 8.8V | 0.052 | |
| SLK-625-0.045 | 250.0 | 625 | 4% | 8.8V | 0.045 | |
| SLK-700-0.04 | 280.0 | 700 | 4% | 8.8V | 0.04 | |
| SLK-800-0.035 | 315.0 | 800 | 4% | 8.8V | 0.035 | |
| SLK-900-0.031 | 355.0 | 900 | 4% | 8.8V | 0.031 | |
| SLK-1000-0.028 | 380.0 | 1000 | 4% | 8.8V | 0.028 | |
| SLK-1100-0.025 | 400.0 | 1100 | 4% | 8.8V | 0.025 |
